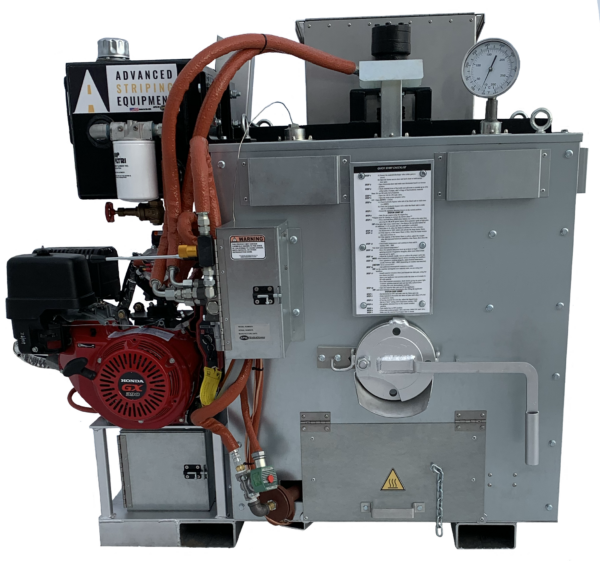

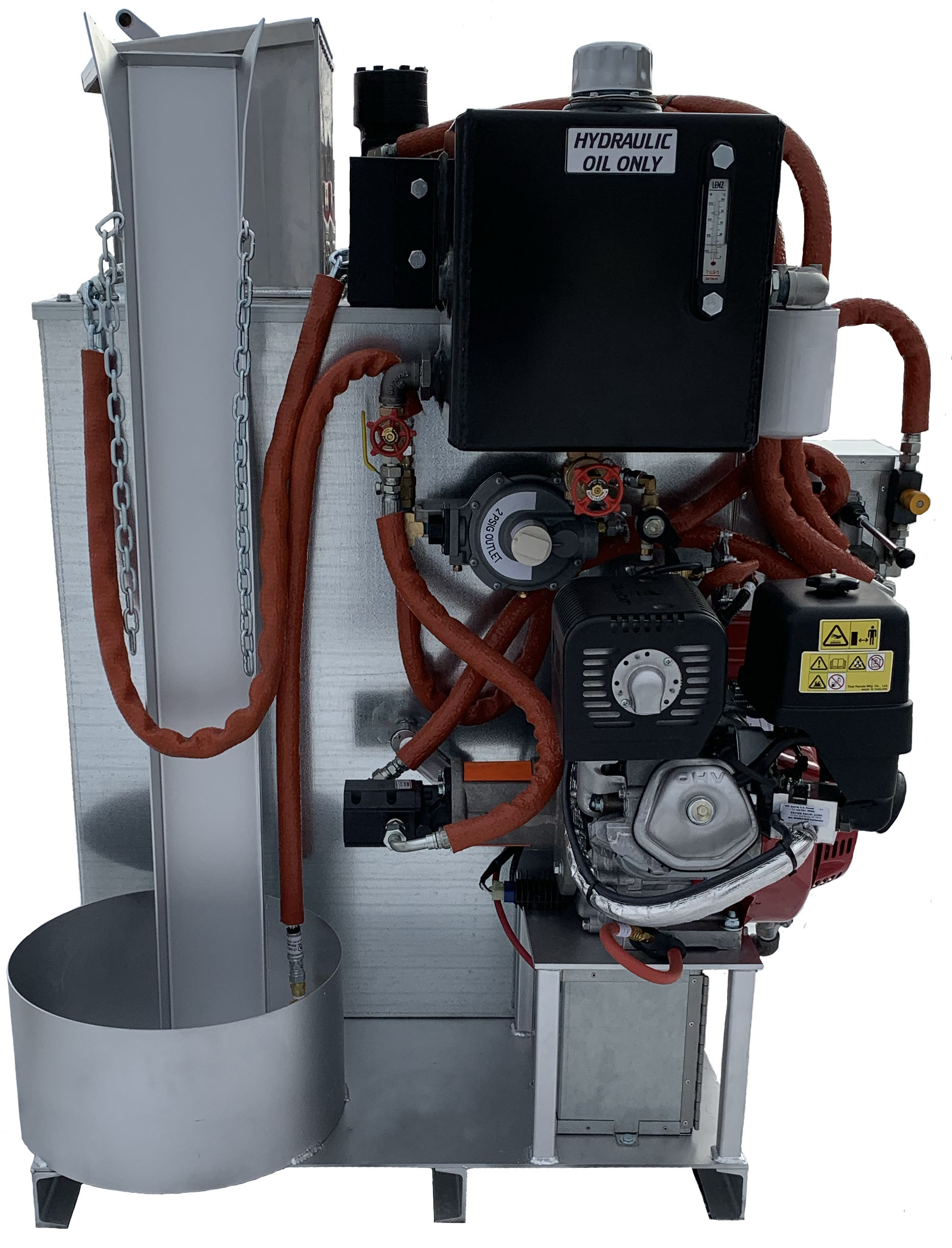

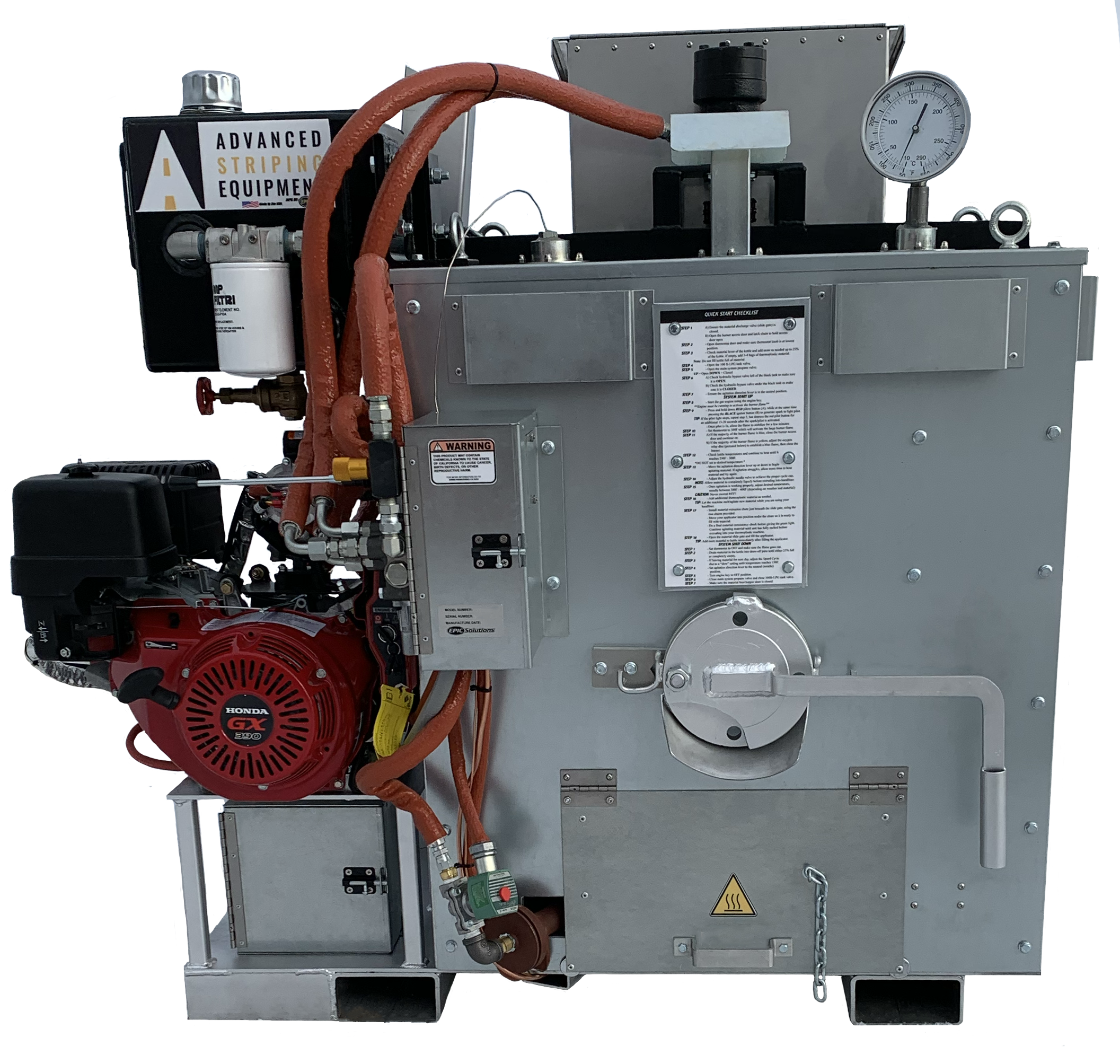

FastMelt™ 650

The FastMelt™ 650 is a completely self-contained thermoplastic melting system that holds 650 lbs. of material. It’s one of the most versatile supply systems with the ability to be placed in the back of a standard pickup, flat-bed truck, or a work trailer for easy transport.  Compatible with any thermoplastic extrusion applicator/handliner.

Features

Safety First Features

The FastMelt™ 650 is a completely self-contained thermoplastic melting system
that holds up to 650 lbs. of material. It’s one of the most versatile supply systems
with the ability to be placed in the back of a standard pickup, flat-bed truck, or

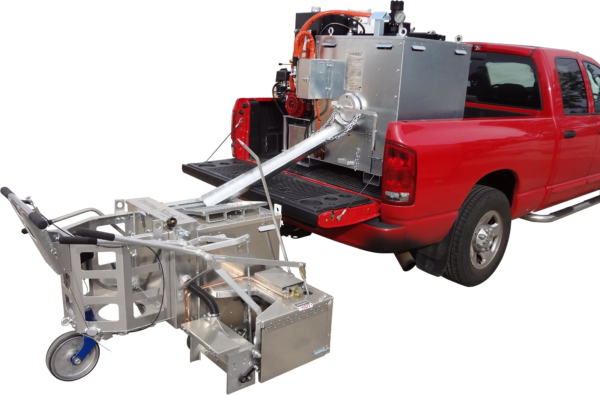

a work trailer for easy transport.  Compatible with any thermoplastic extrusion applicator/handliner.

  • Fills an applicator in minutes
  • Melts and holds up to 650LBS (43 Liquid Gallons) at 400˚F

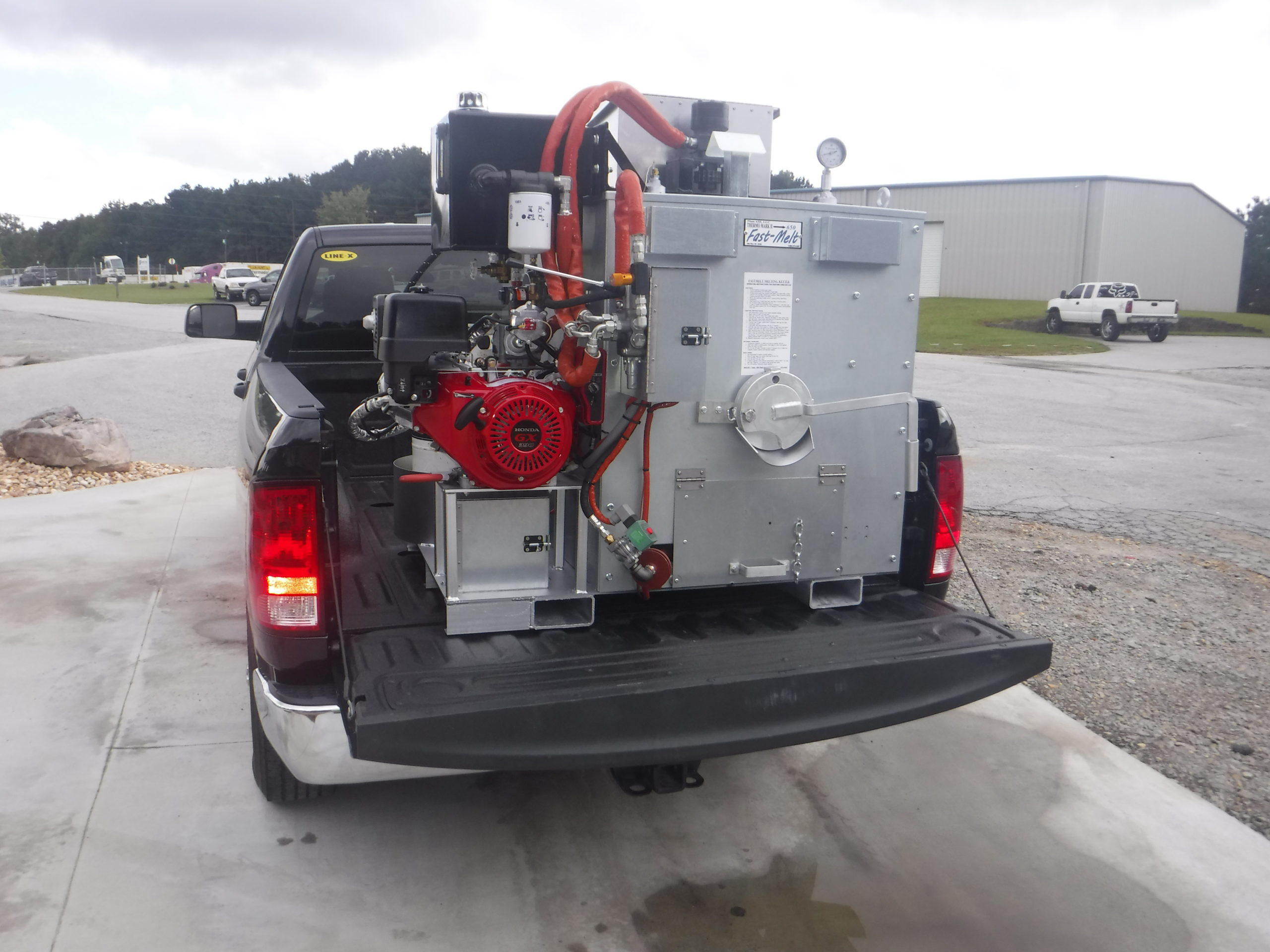

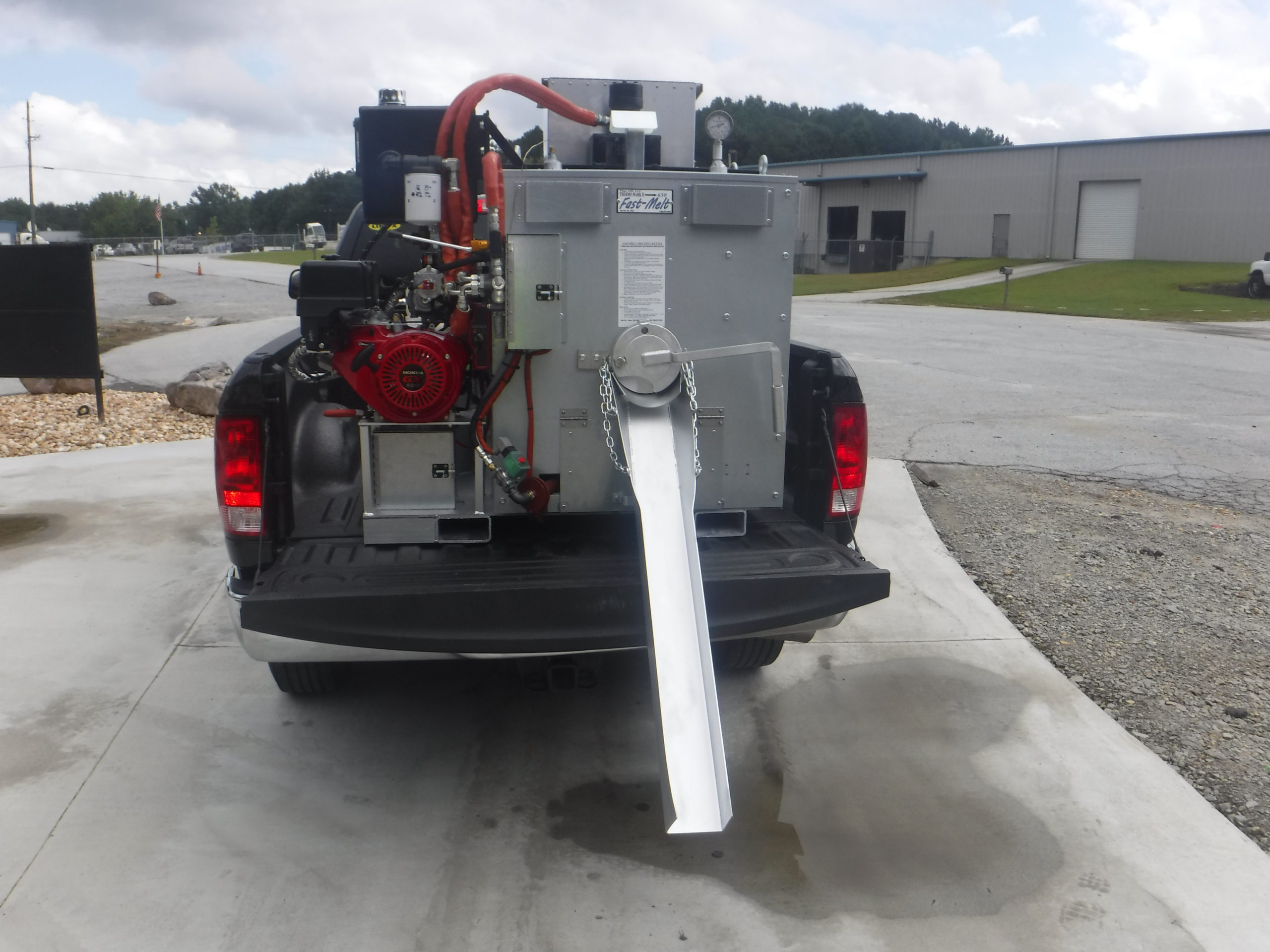

  • Fits in the back of a pickup
  • Compact: 48" W x 42" D x 51" H
  • Lightweight (950 LBS empty)

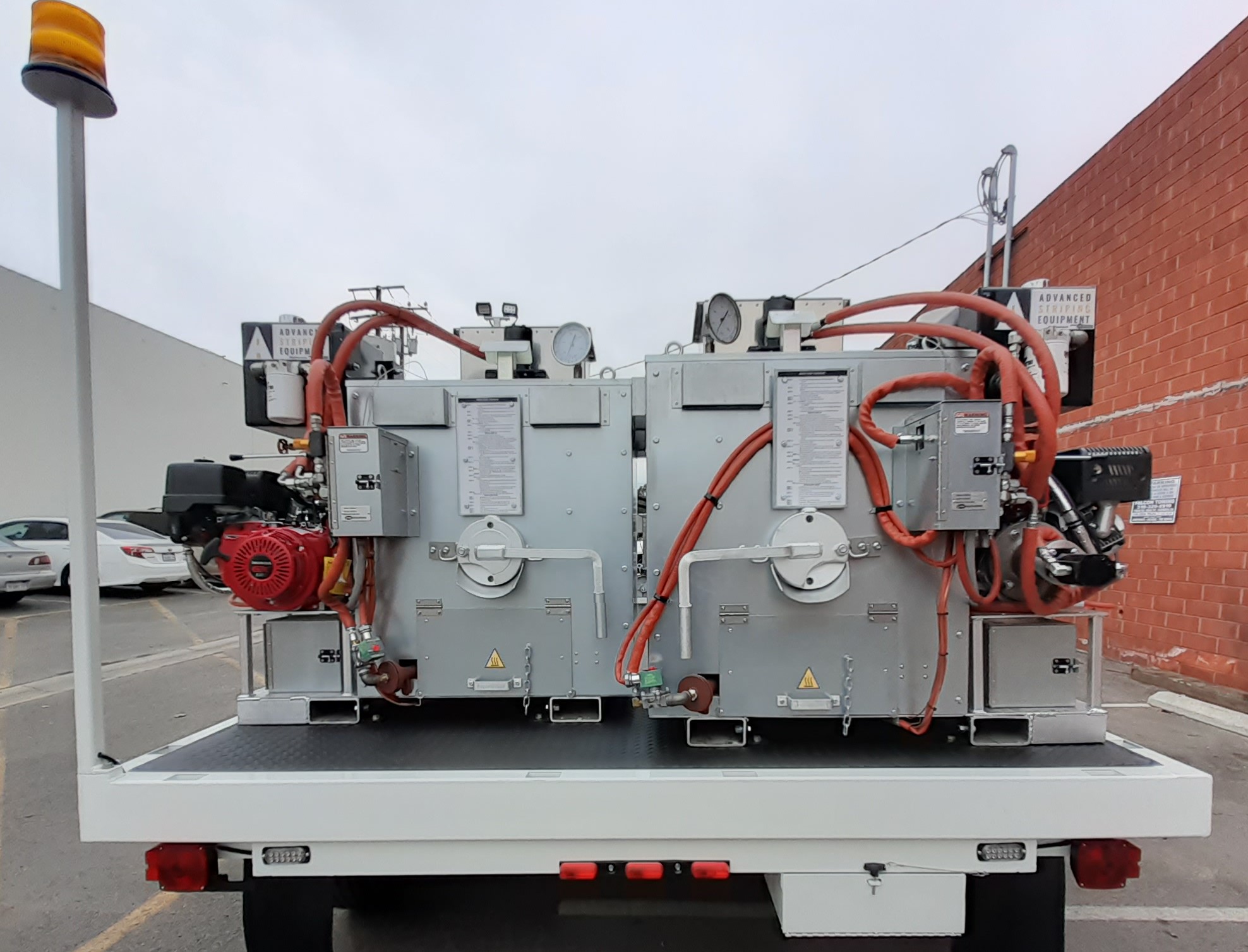

  • Available as a "Double FastMelt 650" (side by side configuration)!
MATERIAL CAPACITY 43 US liquid Gallon
HEATING SYSTEM Propane gas
EMPTY WEIGHT 950 lbs
LOADED WEIGHT 1,699 lbs
LPG FUEL TANK 99 lbs
KETTLE BURNER Ransome
GAS CONTROL Chromalox
HYDRAULIC SYSTEM Two Stage high / low hydraulic pump
SPOOL VALVE HC-M45 directional control with relief
HYDRAULIC RESERVOIR 7 gallon with return filter
ENGINE Briggs & Stratton VANGUARD (LP) Engine - 305cc (10hp) / Electric Start
CONSTRUCTION Modular design
MATERIAL AGITATION Direct drive serrated anchor agitator, adjustable speed control
MATERIAL TEMPERATURE GAUGE 50 - 554°F
DIMENSIONS 48" W x 42" D x 51" H

ASE FastMelt 650 Brochure

ASE Fastmelt 650 Quickstart Guide

Additional Information

Weight 1100 lbs
Dimensions 60 × 60 × 63 in
Engine Side

Left (Default), Right (Special Order)
