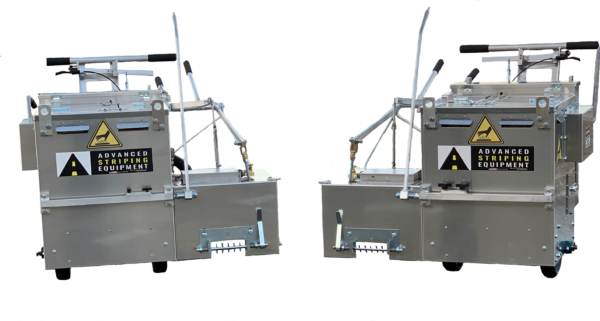

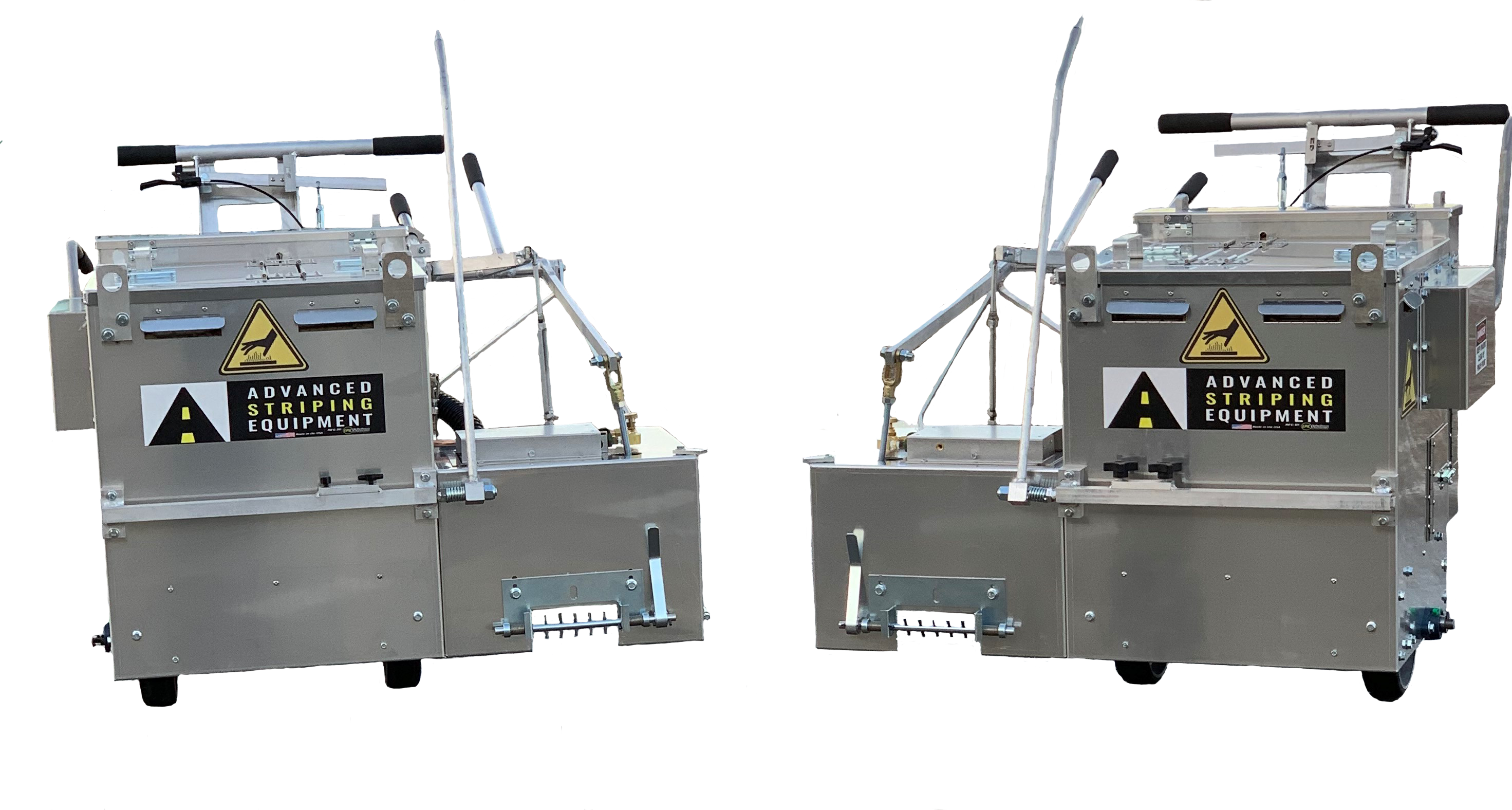

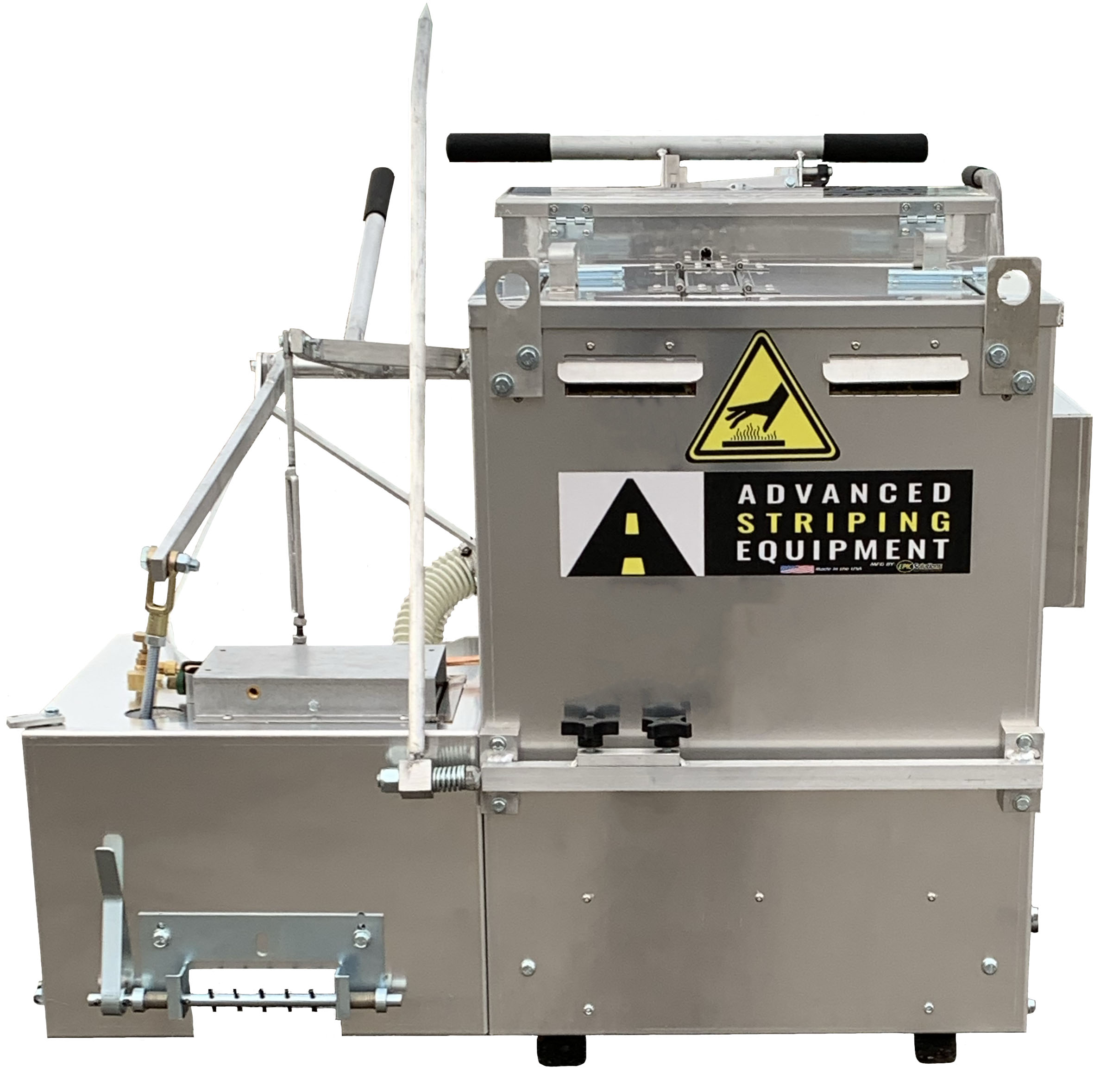

THERMOMARK SERIES HANDLINERS

The ThermoMark™ Series Handliners are built with extremely durable aluminum construction. Exclusive features like insulated reservoirs and a modular design have made them the preferred thermoplastic applicators with professionals throughout the industry. (Add our industry exclusive STEEL DIES for extreme duty thermoplastic extrusion)!

Categories: ,

Features

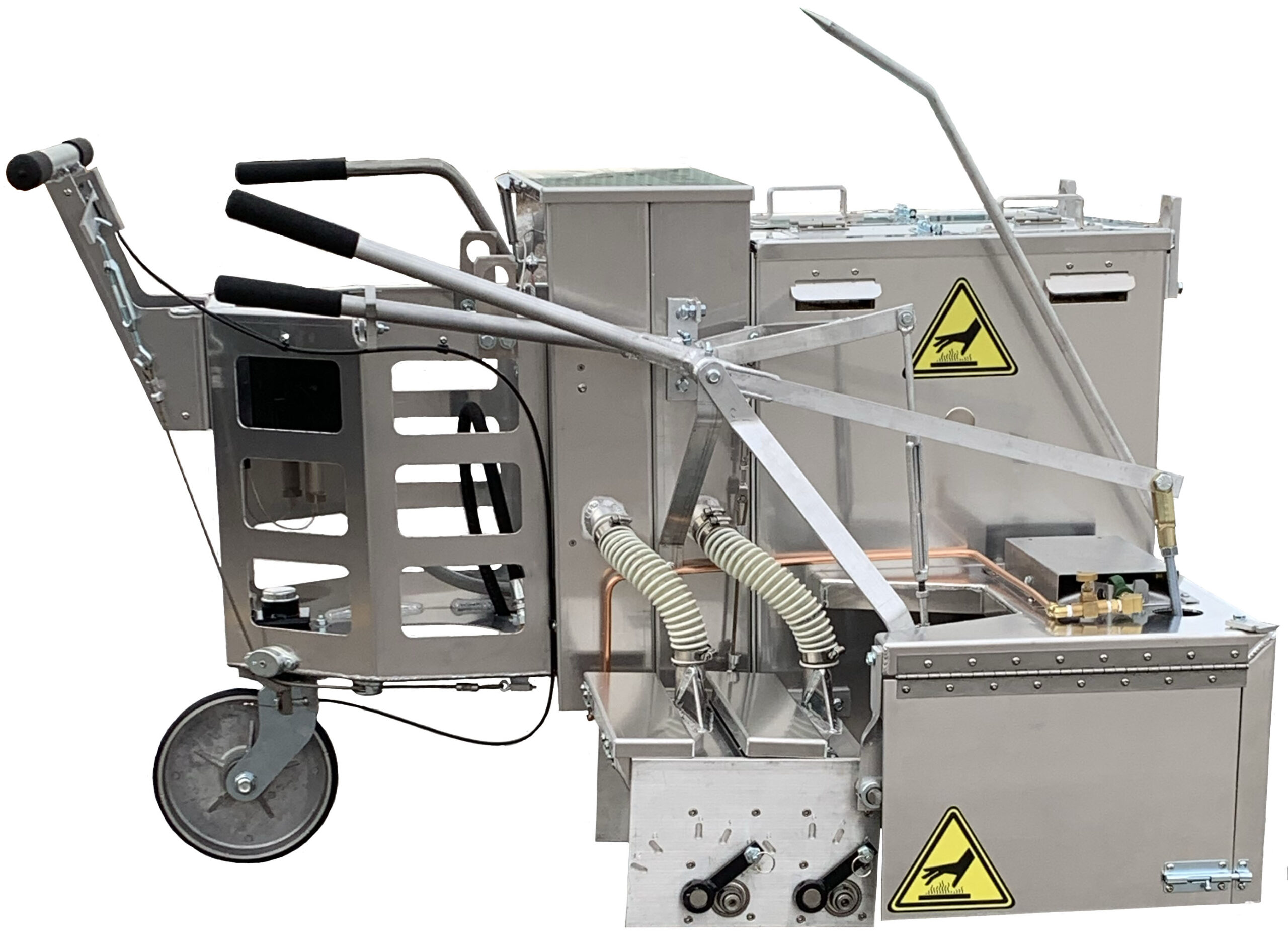

AVAILABLE WITH SINGLE AND DOUBLE DROP BEAD SYSTEM

Exclusive Features

  • The industry’s only insulated reservoir
  • The bolt-together design allows for modular updates and repairs

Easy Operation

  • Dual front brakes for added control
  • All controls are easily accessible
  • Adjustable bead width lever with an “OFF” position
  • Wheel and axle bearings deliver smooth operation

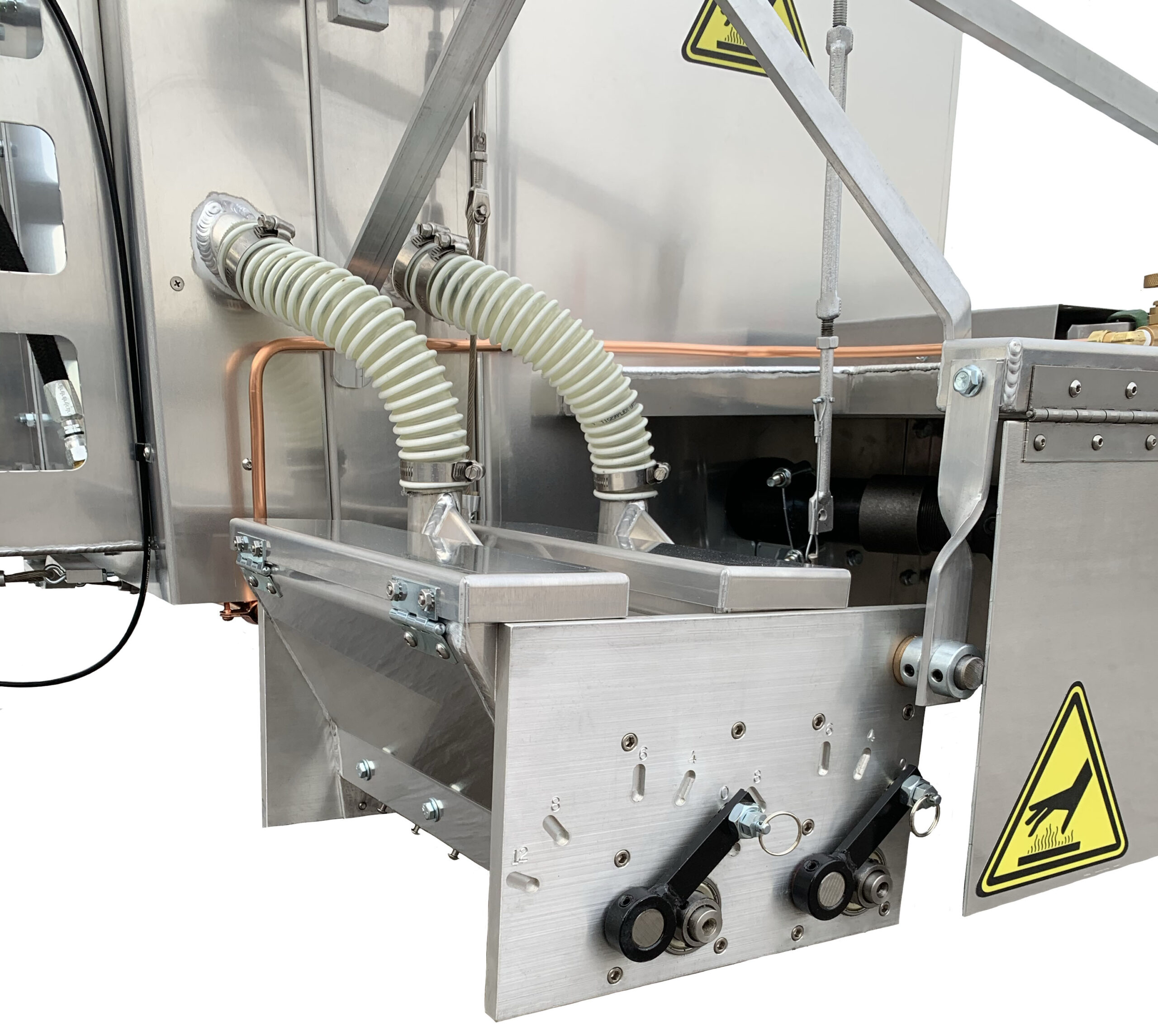

  • Wide mouth bead box offers auto or manual bead application
  • Rear swivel wheel increases maneuverability

Smart Design

  • Dual-screen system filters out solids
  • Easy-to-read thermostat
  • Supply lines and valves are made of stainless steel, brass and copper
  • Lifting rings for easy loading and unloading
250 SINGLE DROP 250 DOUBLE DROP
MATERIAL CAPACITY 250 LBS / 114 KG

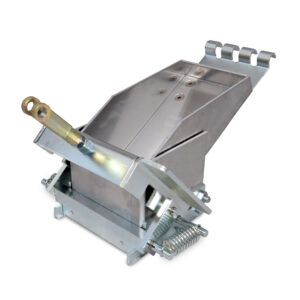

APPLICATION DIE WIDTH MIN. 4", MAX.12" STANDARD
CUSTOM WIDTH AND DUAL LINE DIES AVAILABLE
HEATING TYPE PROPANE (20 LB. BOTTLE REQUIRED)
DIE HEATER INFRARED
EMPTY WEIGHT 255 LBS / 116 KG 315 LBS / 143 KG
MAIN BURNER TWIN RANSOME / 40000 BTU
GAS CONTROL HONEYWELL
BEAD DISPENSER Wheel driven beader with application rate proportioned to ground speed
DISP. WIDTH ADJUSTABLE 4", 6", 8", 12" AND OFF POSITION
MANUAL FRONT POINTER ADJUSTS FOR ALL DIE SIZES
WHEELS Dual solid front and single solid rear wheels provide smooth operation
MATERIAL AGITATION MANUAL / HORIZONTAL SHAFT / REVERSE PITCH / FLOW PADDLES
SHIPPING WEIGHT 550 LBS CRATED 600 LBS CRATED
CONSTRUCTION ALUMINUM WITH BOLT-TOGETHER ASSEMBLY
TURNING RADIUS 360°

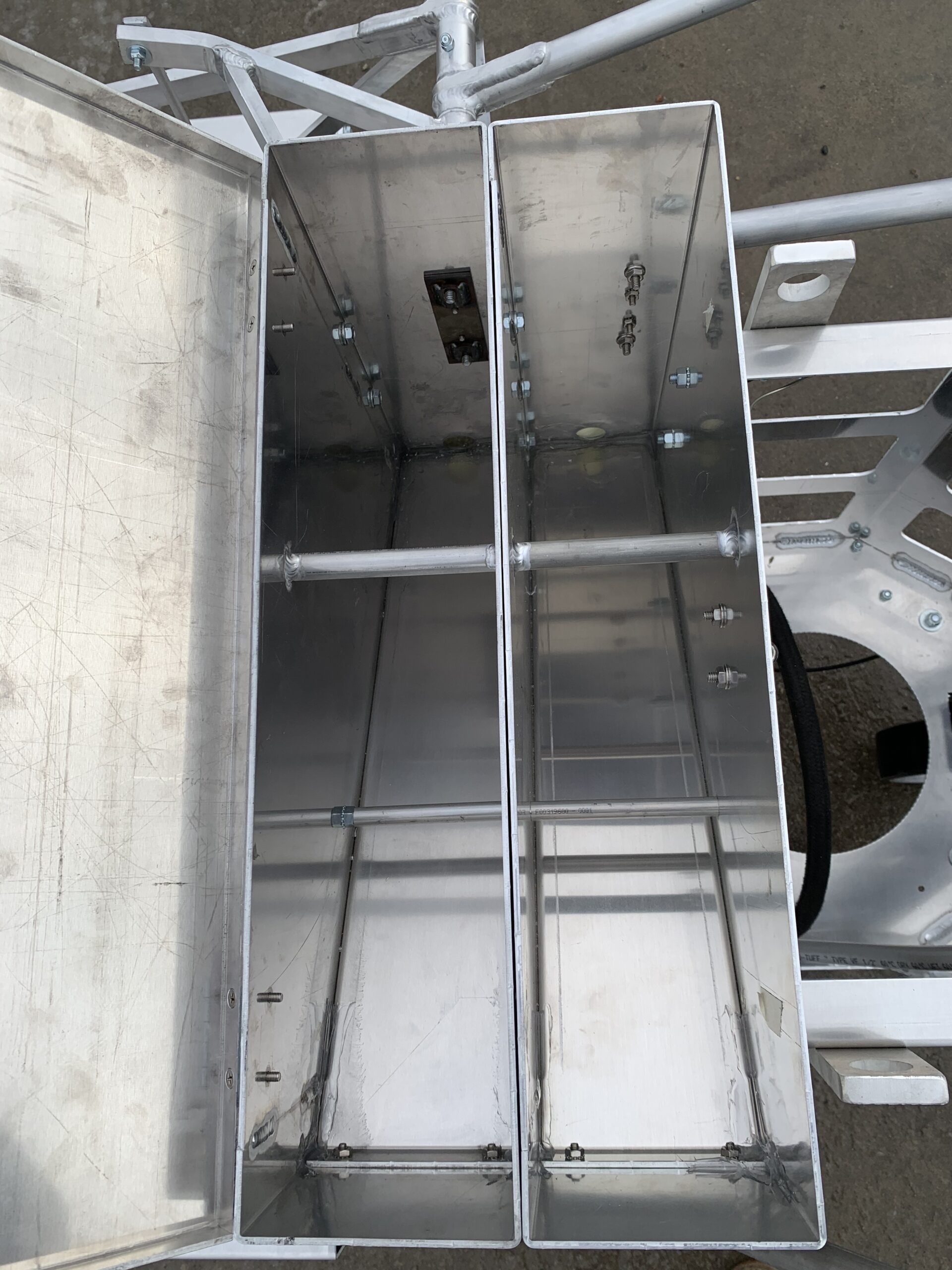

BEAD CAPACITY RESERVOIR 50 LBS. / 23 KG 100 LBS. / 45 KG
DIMENSIONS 53"L X 45"W X 38"H 58"L X 45"W X 38"H

ASE Themomark250 Brochure

ASE Thermomark300 Brochure

Additional Information

Weight 550 lbs
Dimensions 60 × 54 × 48 in
Die Side

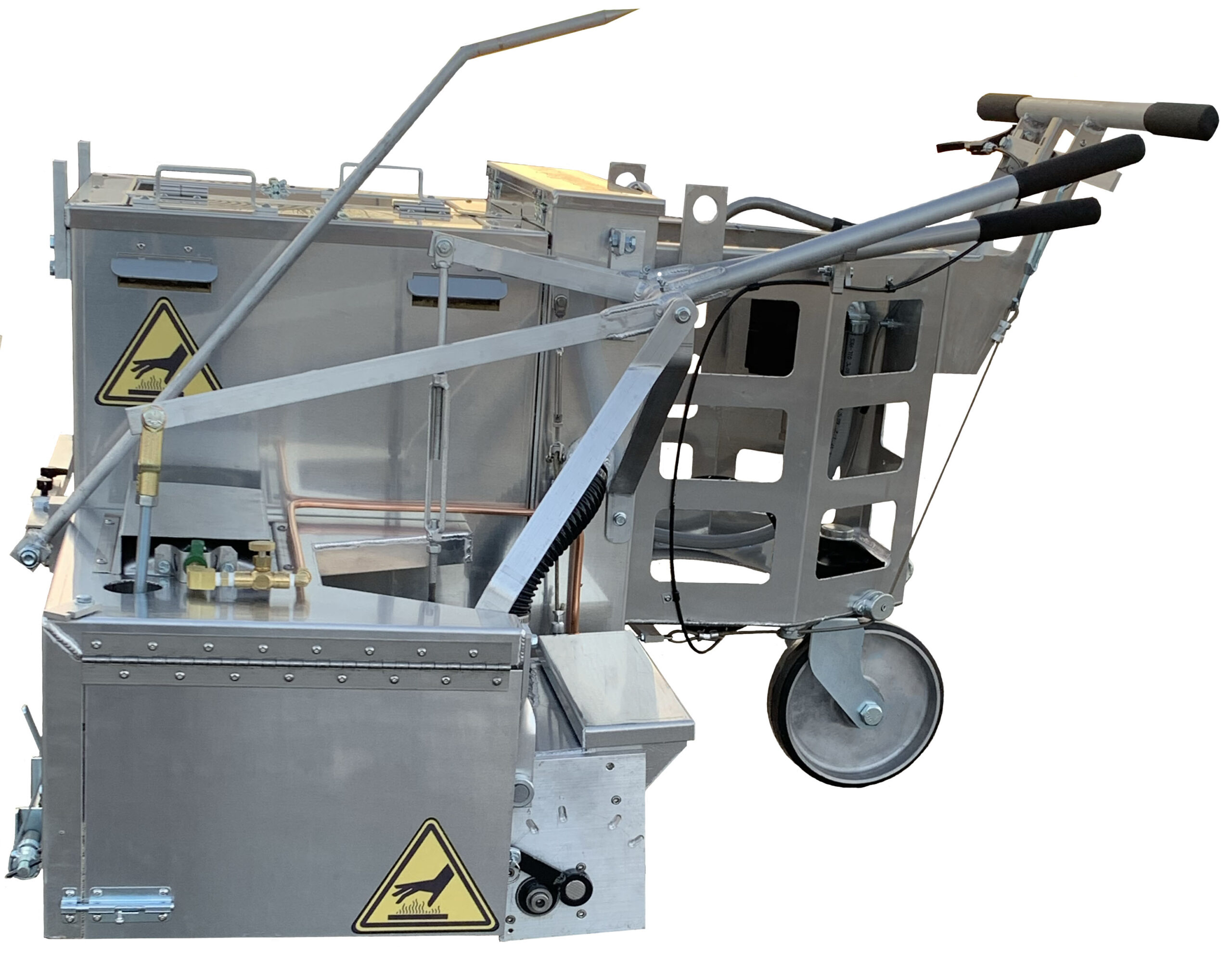

Right (Default), Left (Special Order)
Reservoir Capacity

250 lbs., 300 lbs.
Glass Bead Dispenser

Single drop, Double drop
