THERMOMARK SERIES TOMIHAWK TRAILERS

The TomiHAWK™ Series Pre-melting Trailer/Kettle Systems are an all-in-one transport system with fully customizable options.

  • Features
    • Diesel-Fired / Air Jacketed Kettles available
      • Single or Dual Kettle
    • Customized kettle sizes: 650lb, 1000lb & 1500lb
    • Our new kettles offer an improved heating system that will heat material 20% faster than the prior generation.
      • New: Ergonomic / Octagon shaped kettles
    • Kettle Insulation is non-compressing, so it won’t settle over time.
    • New “bag shredder” punctures bags for a faster melt.
    • Patented Studs on agitator distribute/mix the bag to blend for a faster/improved melt time.
    • Diesel-Fired flame system is designed so no open flame hits bottom of kettle to prevent scorching of material.
    • Constructed with heavy gauge steel
    • Variable-speed agitation with forward and reverse action for optimum blending
    • Anti-Splash Safety Door

Features

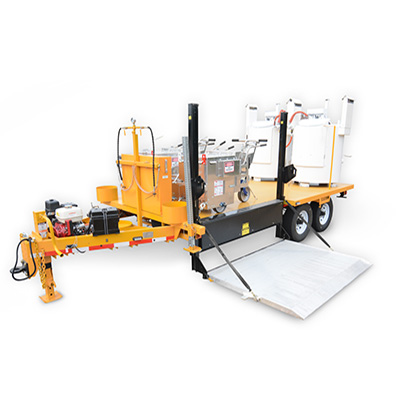

The TomiHAWK™ Series Pre-melting Trailer/Kettle Systems are an all-in-one transport system with fully customizable options.  The TomiHAWK™ Trailer is a dedicated vehicle to transport, melt and carry your thermoplastic road striping material and equipment.

  • Features
    • Diesel-Fired / Air Jacketed Kettles available
      • Single or Dual Kettle
    • Customized kettle sizes: 650lb, 1000lb & 1500lb
    • Our new kettles offer an improved heating system that will heat material 20% faster than the prior generation.
      • New: Ergonomic / Octagon shaped kettles
    • Kettle Insulation is non-compressing, so it won’t settle over time.
    • New “bag shredder” punctures bags for a faster melt.
    • Patented Studs on agitator distribute/mix the bag to blend for a faster/improved melt time.
    • Diesel-Fired flame system is designed so no open flame hits bottom of kettle to prevent scorching of material.
    • Constructed with heavy gauge steel
    • Variable-speed agitation with forward and reverse action for optimum blending
    • Anti-Splash Safety Door
MOTOR 13 HP Honda dual fuel mounted in tongue
11 HP Kubota diesel fueled mounted in tongue
BRAKES 360°
AXLE 7000 lb
DECK PLATING DIAMOND
JACK STAND SCREW TYPE
TRAILER WEIGHT 1400 GVW/5682KG
DIMENSIONS 15"L X 8"W X 35"H

ASE Falcon Kettles Brochure

Additional Information

Weight 2900 lbs
Dimensions 252 × 96 × 114 in
Number of Kettles

One, Two

Fuel Type

Propane, Diesel

Insulating Jacket

Air

Material Capacity

650 lbs., 1200 lbs., 1500 lbs.
